R-Pack™ Rollable Ribbon Plenum Backbone Cable

This item cannot be purchased online. Contact Customer Service to purchase this item.
  • Item #R-Pack™ Rollable Ribbon Plenum Backbone
Item Number
R-Pack™ Rollable Ribbon Plenum Backbone

Description
R-Pack™ Rollable Ribbon Plenum Backbone Cable


Features and Benefits
  • OFS Rollable Ribbon Technology
  • Highly compact, flexible design
  • More efficient cable management in congested routing applications
  • Indoor Plenum rated for routing through ladder racking, raceways or other plenum spaces
  • High fiber density helps save on valuable space
  • OFNP Flame Rating
  • Fiber counts of 24, 48 and 72
  • Plenum materials
  • Optimized for fast, cost-effective mass fusion splicing
  • Meets Telcordia GR-409 standards for horizontal backbone applications and NFPA 202 requirements
  • Rollable ribbons help enable smaller cable outer diameter (OD) and reduced weight versus traditional ribbon cable designs
  • Cable flexibility simplifies handling and installation



Operating Temperature-20 to 70 (ºC)
Cable Weight32.8,38.2,43.7 (kg/km)
Cable Weight22.0,25.6,29.3 (lb/kft)
Storage Temperature Range-40 to 70 (ºC)

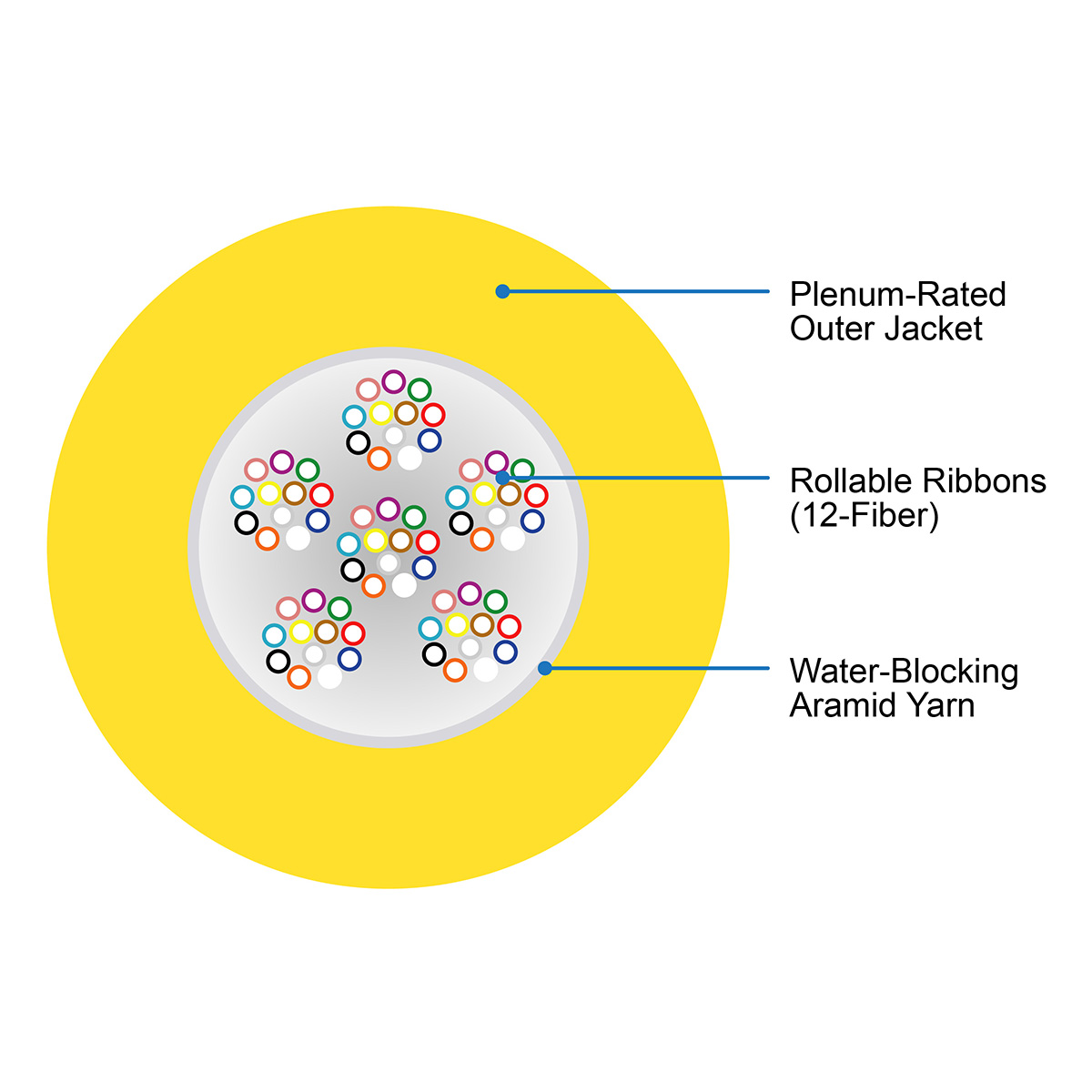

ConstructionRibbon
Performance StandardThe R-Pack Rollable Ribbon Backbone Cable meets all or portions of Telcordia GR-409Horizontal Backbone/ICEA-S-83-596/ICEA-S-104-696/ICEA-S-115-730 and TIA-568.These plenum-rated cables are UL® listed as compliant with NEC® Article 770 as Type OFNP.
Fiber Count24,48,72
Cable Outer Diameter0.21,0.23,0.24 (in)
Cable Outer Diameter5.4,5.8,6.2 (mm)
Installation Temperature-20 to 60 (ºC)
Installation Temperature-4 to 140 (ºF)
Cable TypeRollable Ribbon
Indoor or I/OIndoor
Mechanical RatingGR409
Flame Spread RatingPlenum Rated
Fiber CoatingRollable Ribbon
Maximum Tensile Rating660 (N)
